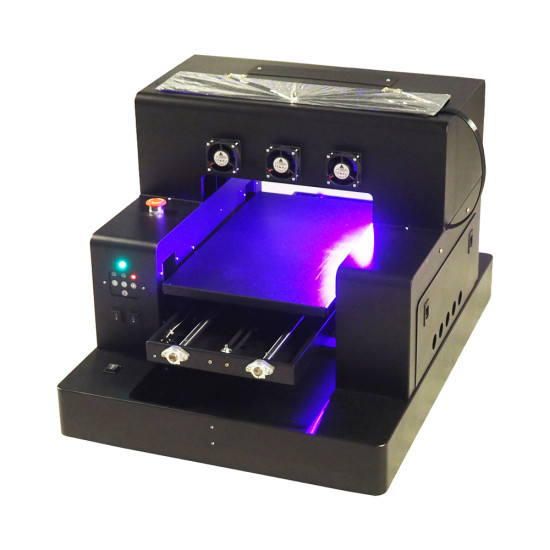

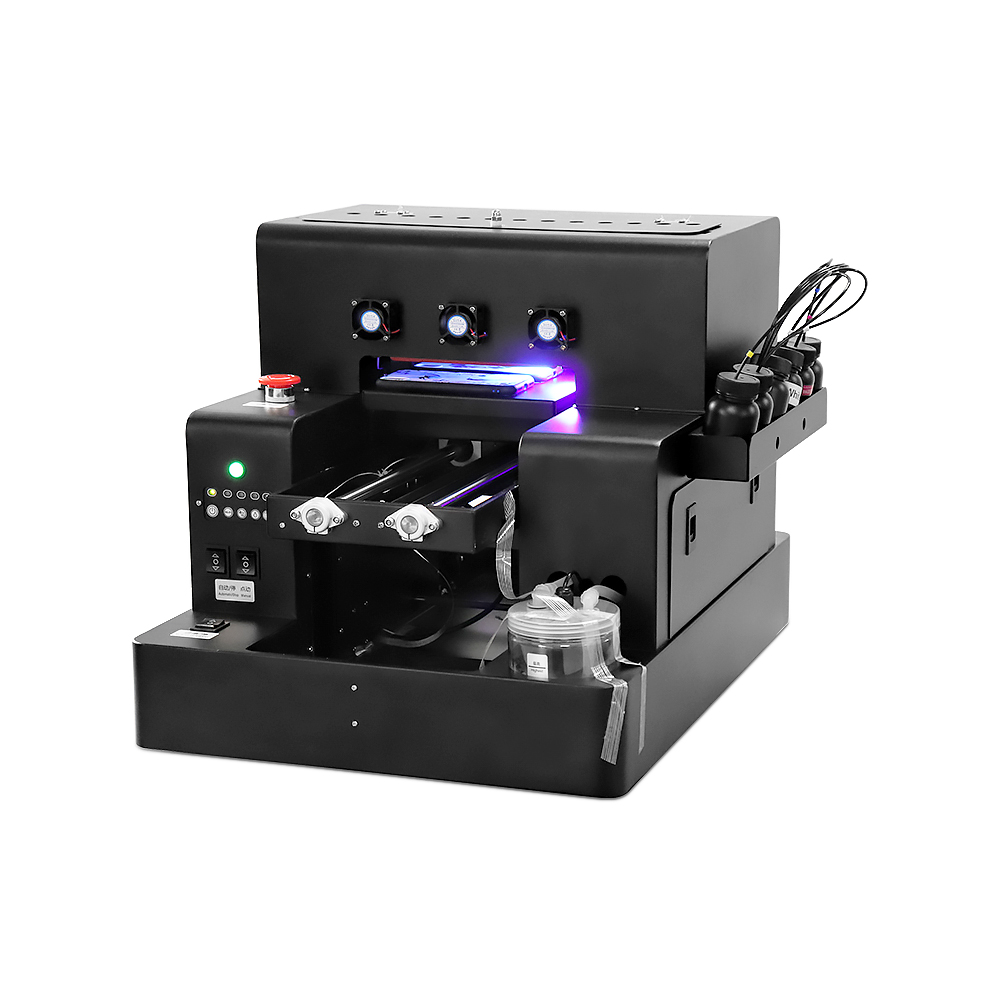

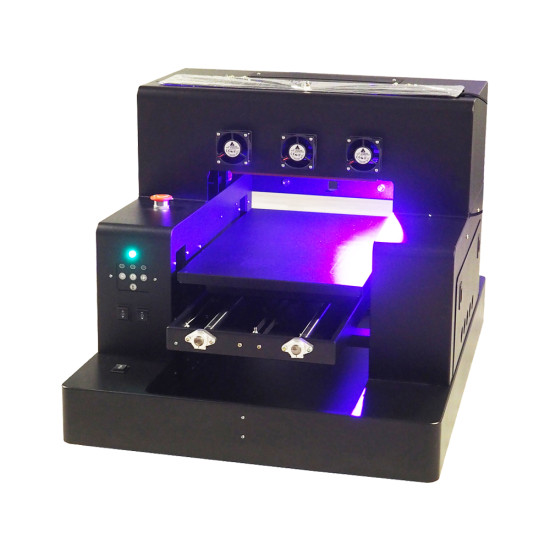

A3 Spot UV Printing Machine UV Coating Printer

The A3 Spot UV Printing Machine brings a new dimension to your printing possibilities, offering high-quality direct-to-surface printing on a wide range of materials, including metal, plastic, glass, acrylic, tiles, wood, and more. This advanced UV coating printer is designed to deliver exceptional clarity, vibrant colors, and a glossy finish, enhancing both the texture and visual appeal of your printed products.

Perfect for businesses looking to create eye-catching promotional materials, signage, and custom designs, the A3 Spot UV Printer is capable of printing intricate details with precision and high definition. The UV coating feature ensures that your prints are not only visually striking but also durable and resistant to fading, scratches, and wear, making it ideal for both indoor and outdoor applications.

This machine offers versatility, allowing you to print on flat or rigid surfaces with ease, offering endless opportunities for product customization. Whether you're printing promotional gifts, packaging, or unique décor items, the A3 Spot UV Printing Machine enables businesses to stand out with premium-quality prints and finishes.

Compact, efficient, and user-friendly, this printer is an essential tool for companies aiming to push the boundaries of creativity and elevate their products with a professional, high-gloss UV finish.

For Desktop UV Printer,we not only have this A3 Size,but also we have A4 Small size, following is the directly link of A4 UV Printer:

https://www.gnfei.net/spot-a4-led-uv-printer-cylinder-printing

A3 Spot UV Printing Machine – Precision Printing for a Variety of Materials Newest small uv printer what support Spot UV Printing Glossy Varnish UV-Ink Printing,with this printer,you can print color ink, white ink and Glossy Varnish Ink.

Features：

1.Multifunction,can print flat and cylinder surface

2.Full automatic,tray movement and height adjustment all automatic,low noise

3.Time saving for bulk printing,no need to detect the height again for same printing

4.Color and White printing at same pass,more accurate when printing on cylinder product

5.High-precision printing, resolution can up to 1440dpi

6.Support Varnish Glossy Ink printing

Specifications：

Model Number:F85V3

Ink Type:LED UV-Ink

Printer Head:EPSON L805 or XP600 Head series(XP600 Head speed much higher)

Ink Color:CMYK + White +Varnish or CMYK+WW

Print Size:32*50CM (Tray size:33*50CM),Tray with Vacuum Platform

Print Thickness:Flat: 0-15CM/ ,Cylinder Diameter 2-11CM

Ink Supply System: CISS System with White ink Stirring System

Advantage:High Resolution,Precise Positioning,Full Automatic adjustment for print height

Print Technology:LED UV Lamp Cured,Smart Bidirectional Printing,Auto Nozzle checking,Auto Nozzles cleaning system,Smart size of ink  droplet

Protection:Full Automatic for the tray height,easy protection for the head

Up/Down:Full Automatic

Print Speed:About 173 seconds/A3 Size Photo Image

Print Weight:0-10KG

Ink Assistant:Directly insert ink tube to ink bottle

Tray:Metal Tray with Vacuum Platform

Working Condition:Temperature:15℃-30℃,Humidity  40%-70%

Print Software:Acro RIP Software

Connection:USB2.0/1.1/3.0 Port

Power Require:110-240V,Around 60W

Image Format:TIFF(RGB&CMYK),BMP,PDF,EPS,JPEG,JPG Etc.

Computer Sys:Windows 7-11

Printer Size:76*63*51cm

Printer Weight:51kg(68KG with package)

Package Size: 91*59*70cm

How Printer works? Please watch several demo videos:

If you want to to watch more demo video, please contact us, or send us materials for demo printing

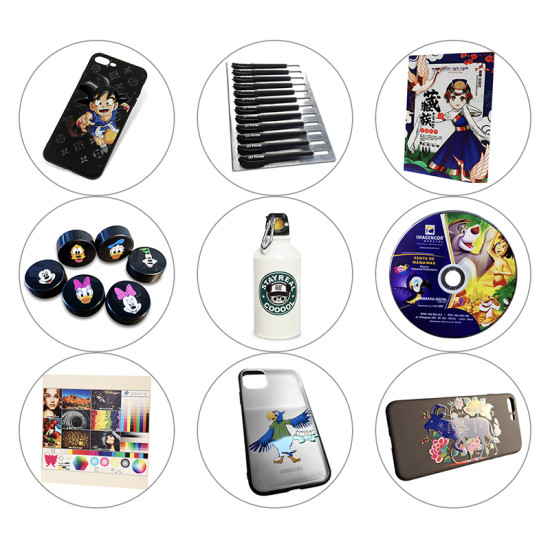

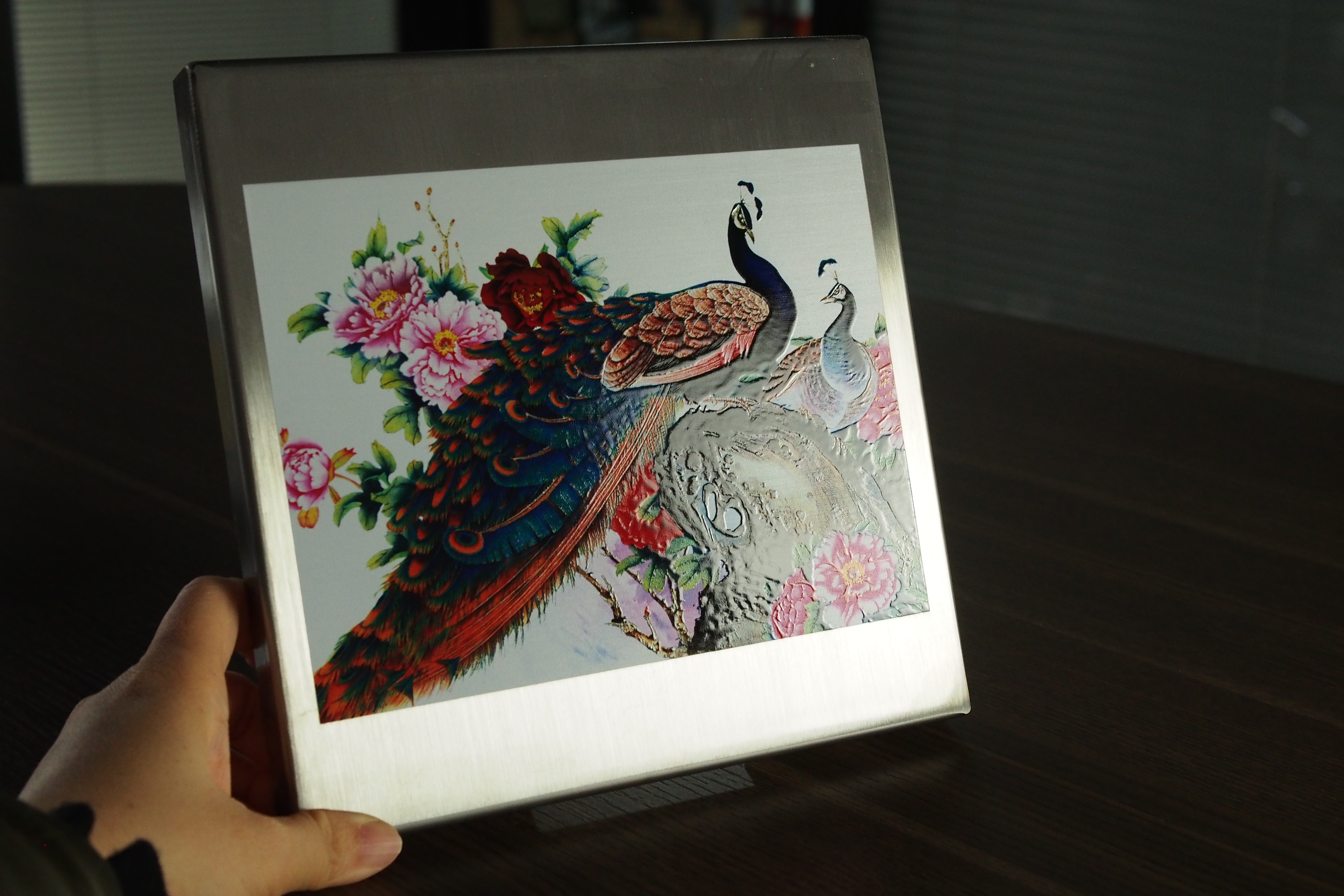

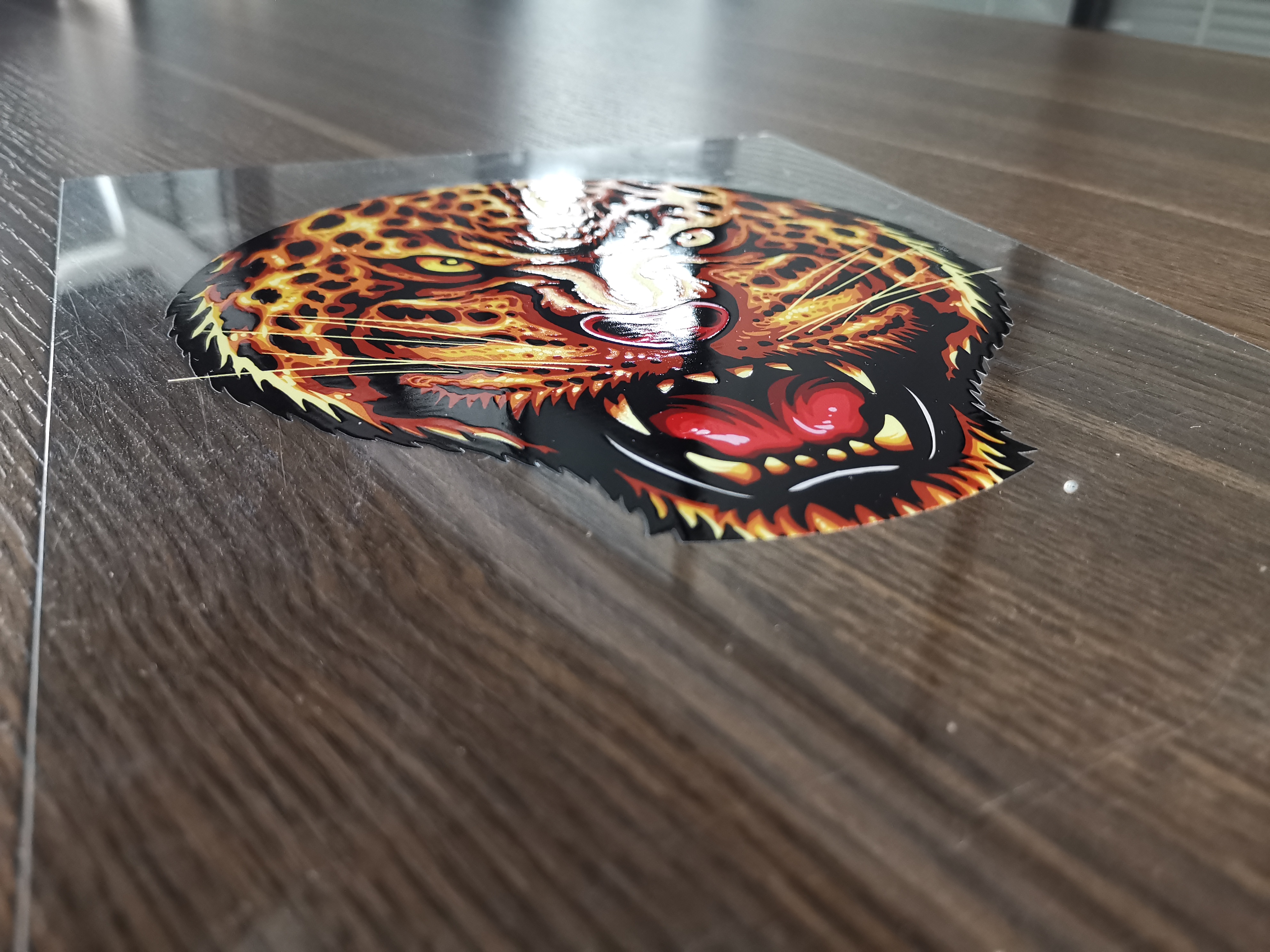

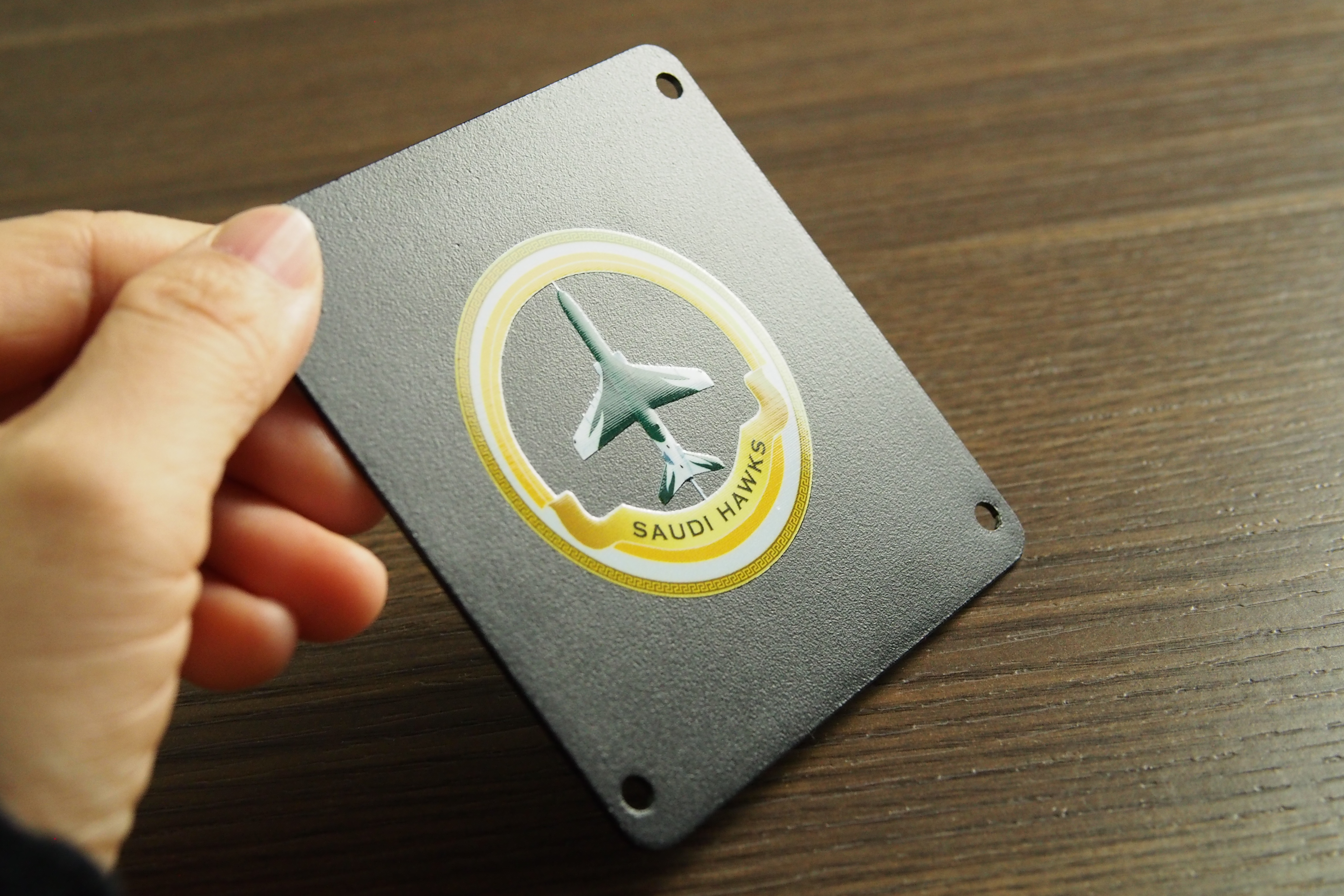

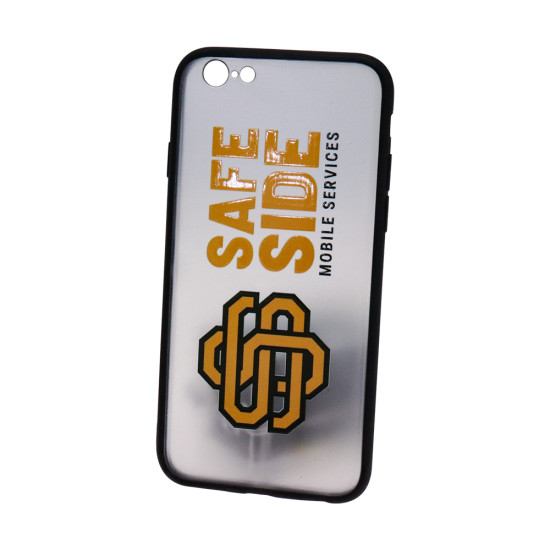

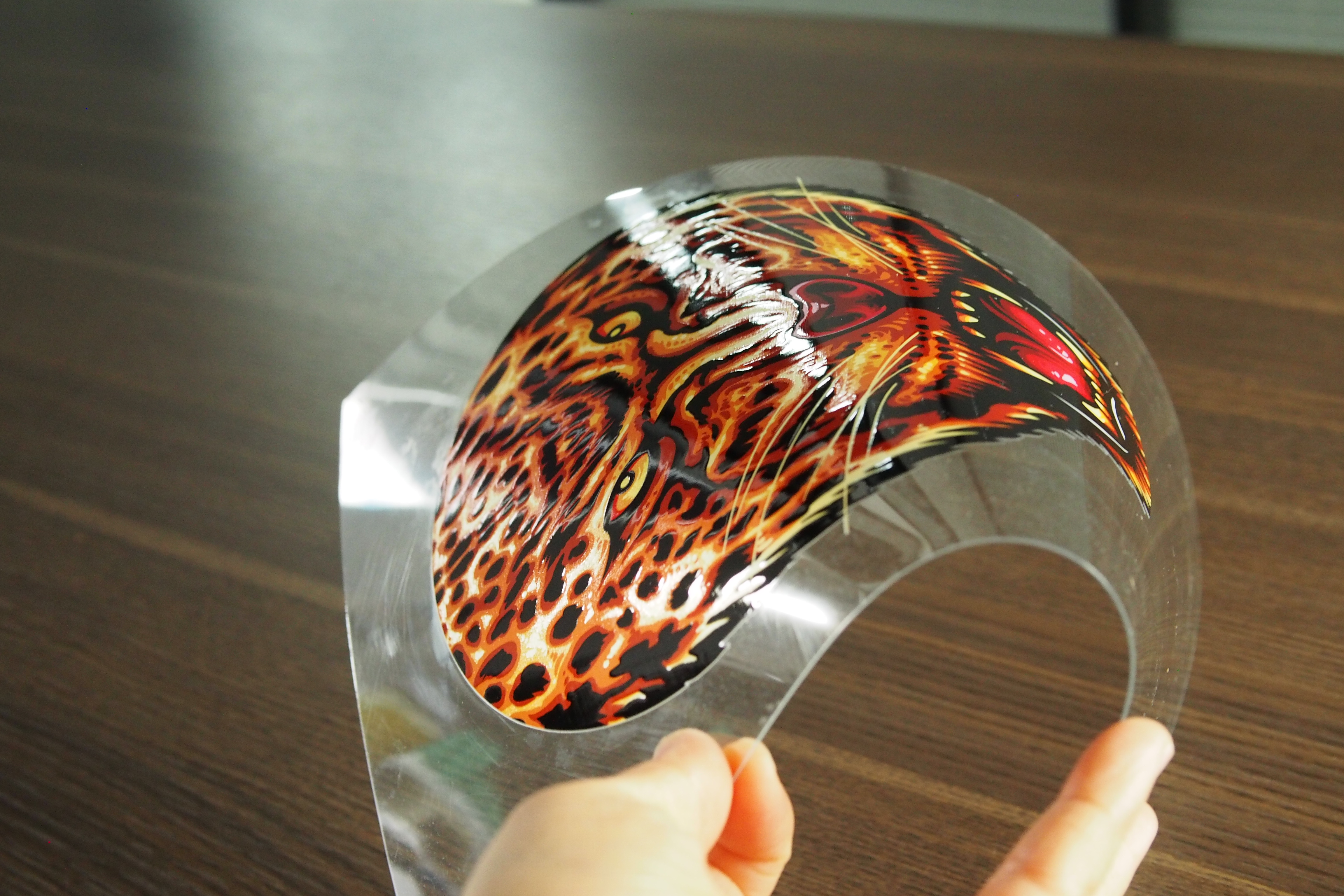

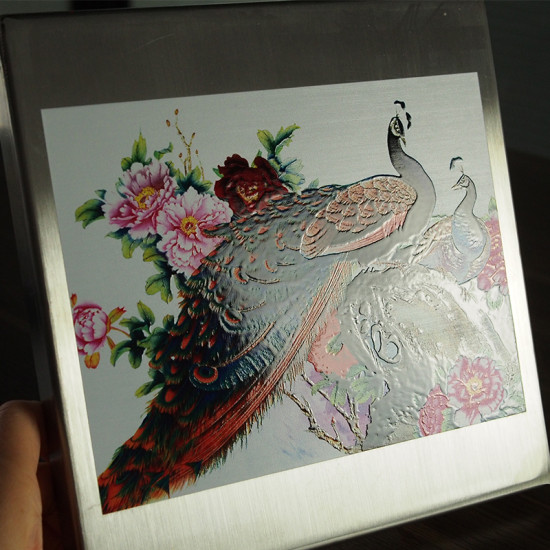

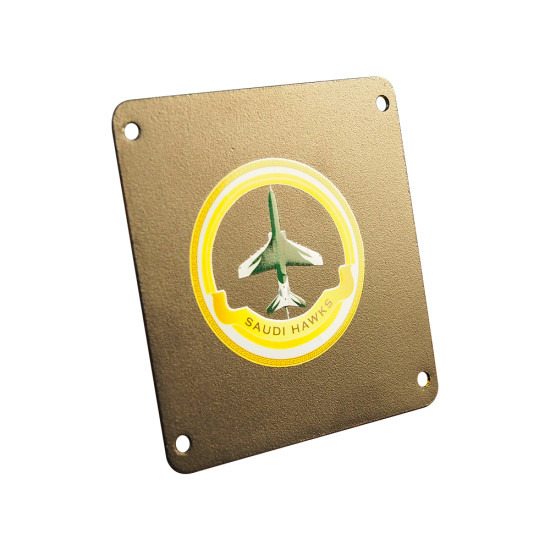

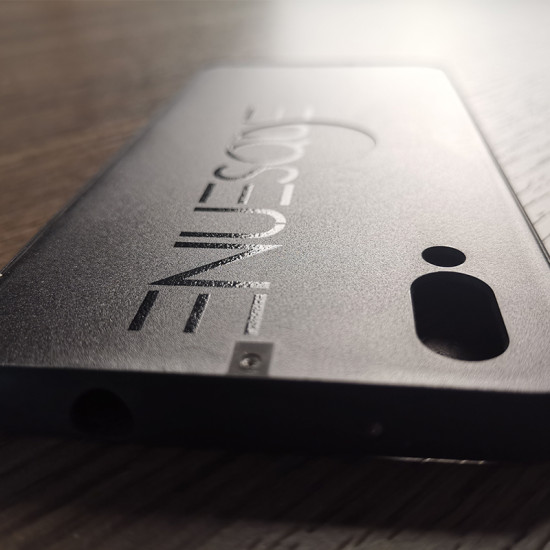

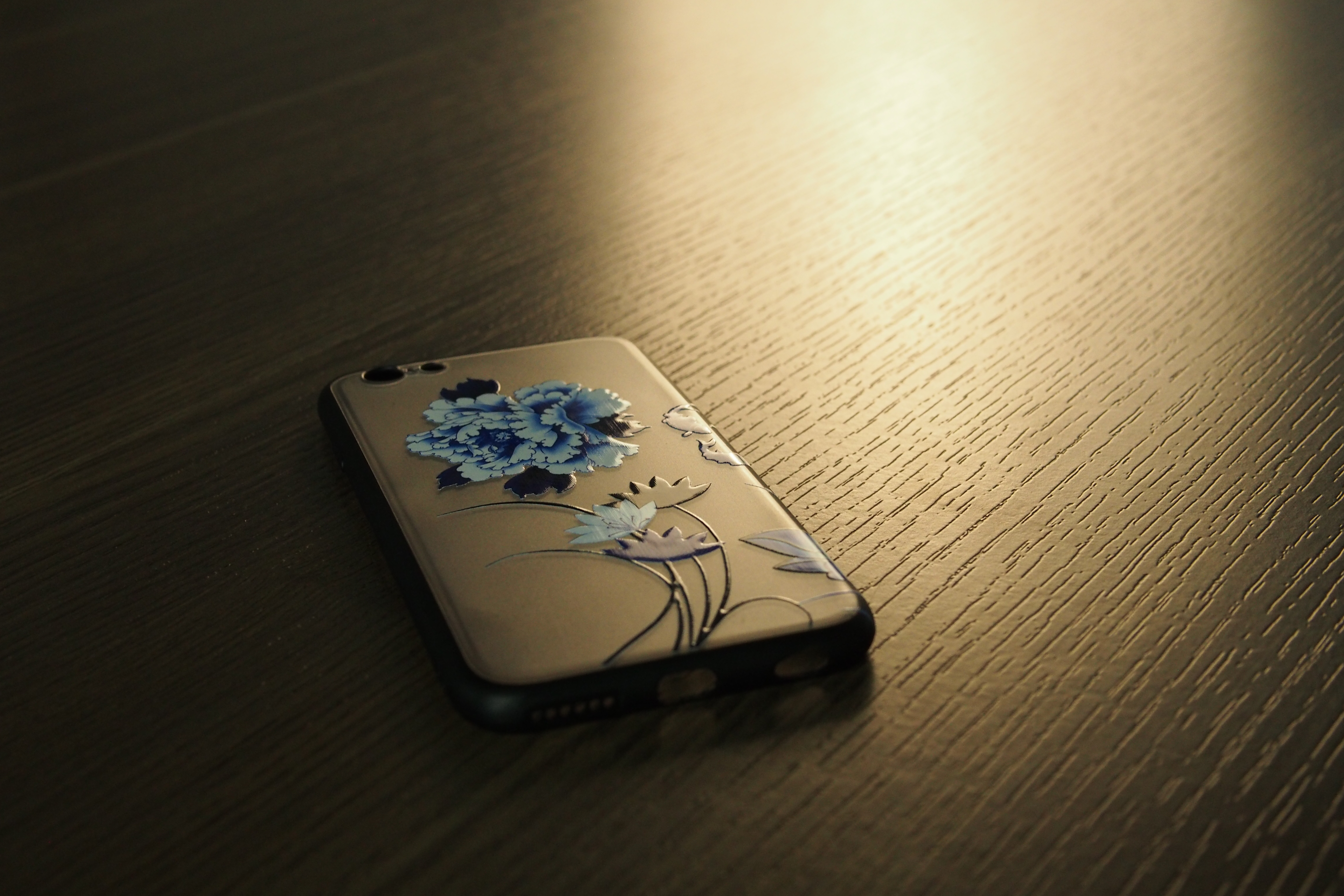

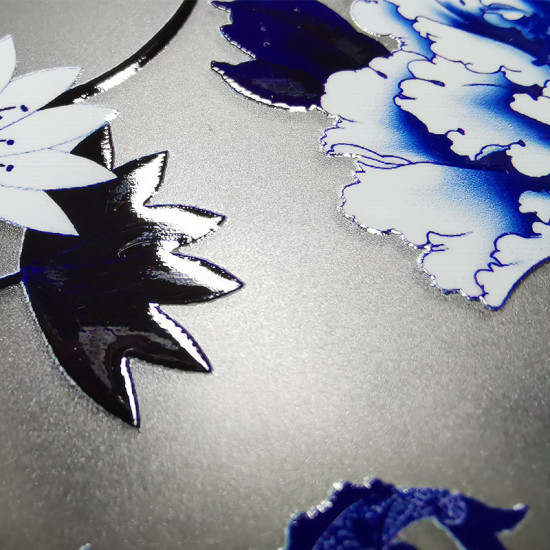

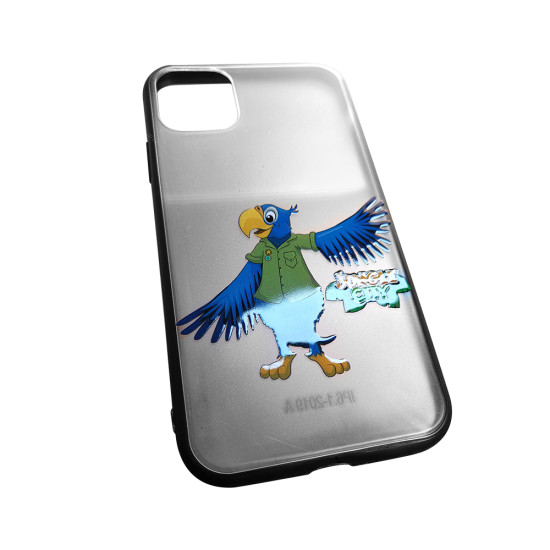

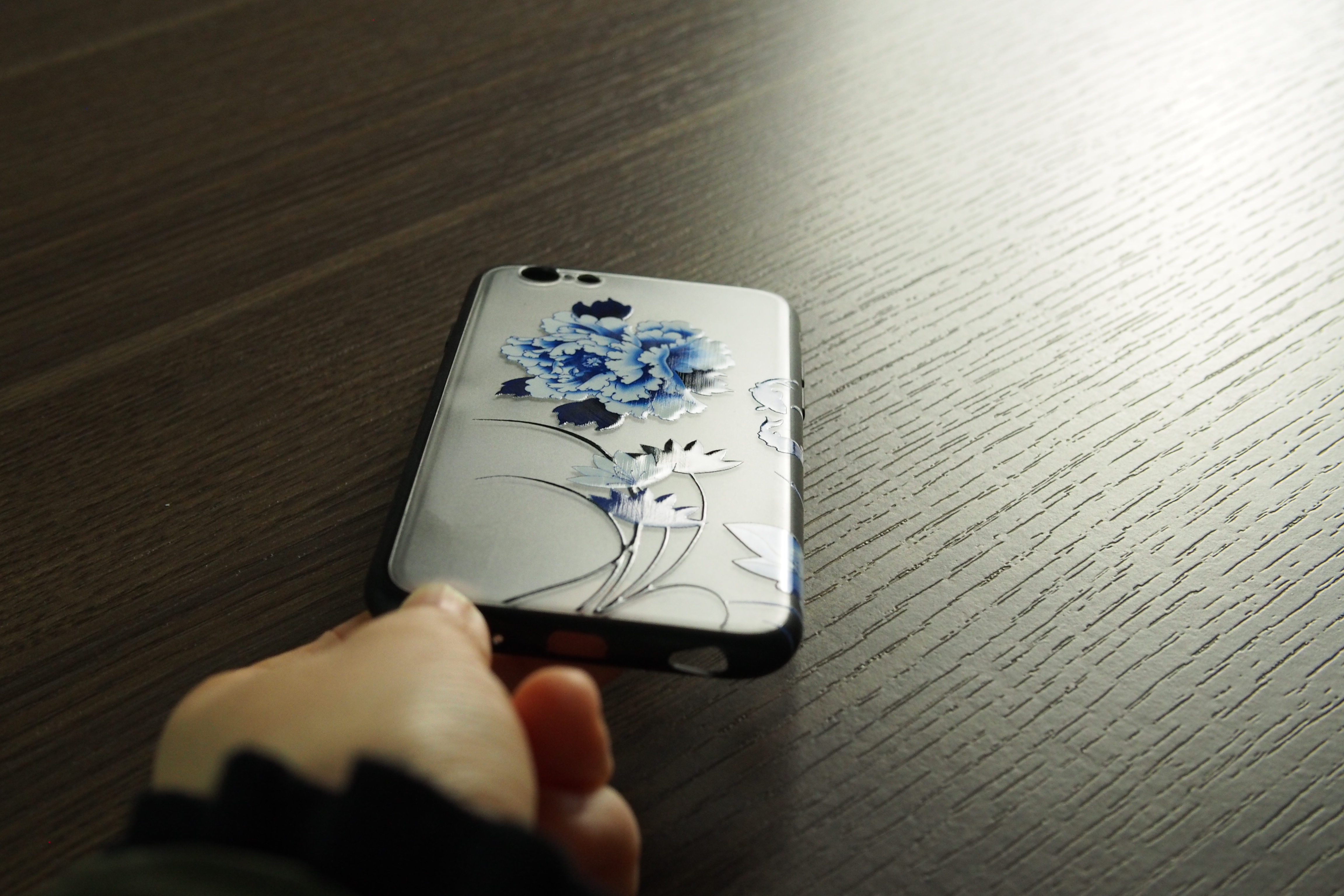

Details samples picture:

For more sample photos, please contact with us
